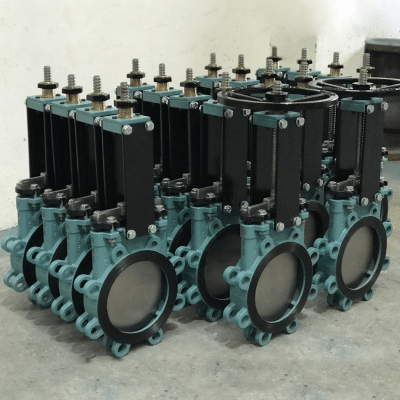

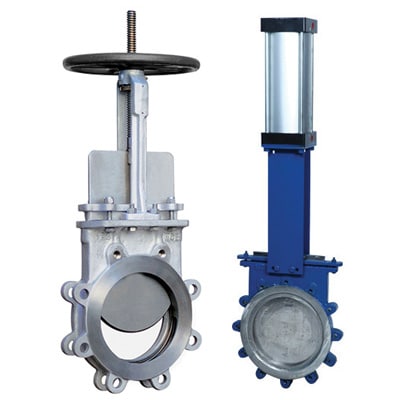

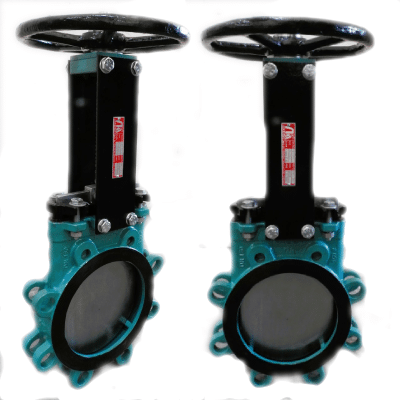

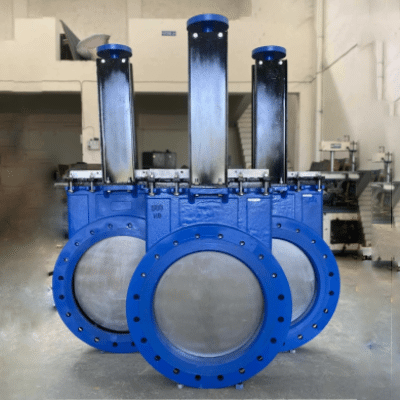

Heavy Duty Knife Gate Valve manufacturer in Ahmedabad
Axegic Group is a prominent Knife Edge Gate Valve manufacturer, supplier, and exporter in India, dealing with specialty valves for rigorous industrial use. A Knife Edge Gate Valve is an advanced flow control device specially designed to handle slurry, viscous fluids, thick media, semi-solids, and abrasive materials. With several material options for gate, seat, and wear ring, our valves provide a leak-tight shut-off even for difficult media with solid particles. The tough blade of the valve slices through the difficult media easily, giving it a smooth, clean operation that is reliable and without a clog.
Axegic Group Inc produces high-performance Knife Edge Gate Valves that are designed to be durable, precise and zero-leakage in operation in various industries. We are in the design and manufacture of MSS SP-81 up to 36 inch (900mm) and up to ASME Class 150, PN 10 and PN 16 pressure rating. We have all the materials you require, such as stainless and duplex steel, which are reliable and durable to use in a given application. Knife edge gate valves are carefully designed to provide reliable isolation, low pressure drop and extended life on a rigorous industrial application.
Precision Engineered Knife Gate Valves for Demanding Applications
Key Features
- Effective slurry cutting sharp-edged gate design.
- Excellent shut-off with low leakage.
- Small and space-saving valve design.
- Use in high-pressure and high-temperature applications.
- Bidirectional and unidirectional designs.
- Minimal maintenance and long service life.
Aplication
- Mining & Slurry Handling
- Power Generation Plants
- Pulp & Paper Industry
- Plants Chemical, Petrochemical
- Water Treatment and sewage systems
- Sugar, Cement and Steel Industries
- Pharmaceutical & Food Processing Units.
Useable with manual actuators, pneumatic actuators, electric actuators, and hydraulic actuators.
Technical Specifications
| Feature | Specification |
| Valve Size | DN50 to DN600 (custom up to DN1200) |
| Used Materials | Body: SS304/316, CI, WCB; Blade: SS; Seat: EPDM/PTFE |
| Pressure Rating | PN10-PN16 (tested 1.5x) |
| Temperature | -20°C to 180°C |
| Actuation | Manual, Pneumatic, Electric, Hydraulic |
| Standards | MSS SP-81, API 598, ISO 9001 |
| Port Types | Round, Square, Rectangular |
How Knife Gate Valve Work?
Step 1: Gate in Open Position
When the valve is open full, the knife-shaped gate is raised completely out of the way. This enables it to flow freely at low pressure drop, thus making it suitable for slurry and bulk material handling systems.
Step 2: Movement of the gate (Closing Action)
As the actuator (manual, pneumatic, electric or hydraulic) is operated, the gate is initiated to start descending.
Step 3: Cutting Through Media
The leading edge of the gate is sharp, cutting through thick fluids, fibers and suspended solids that would otherwise block traditional valves.
Step 4: Seating and Sealing
When completely closed, the gate closes against the valve seat, creating a tight seal. Depending on the design: On one side Unidirectional valves close against the pressure. Bi-directional valves are good in both directions.
Step 5: Complete Flow Isolation
The valve closes to a full shut-off, avoiding leakage even in process environments that are demanding.
Knife Edge Gate Valve Types
Fabricated Knife Edge Gate Valve
Sturdy construction of large-diameter pipelines and strenuous industrial activities.
Bidirectional Knife Edge Gate Valve
The design is such that it can close well in both directions of flow and is suitable for complex piping systems.
Unidirectional Knife Edge Gate Valve
Designed to operate on a single flow direction and provide a superior sealing efficiency of slurry lines.
Rectangular Knife edge gate valves
The most common are found in chutes, hoppers and material handling systems where a round connection is impossible.
Square Knife Edge Gate Valve
Our valves are expertly designed with a square port to avert material build-up and maintain a tight, smooth shut-off.
Unidirectional Knife Edge Gate Valve
Designed to operate on a single flow direction and provide a superior sealing efficiency of slurry lines.
Why Choose US?
- Accurate production and high control of quality.
- Designed to resist abrasive and corrosive media.
- Available in custom sizes and pressure.
- Adherence to industrial performance and safety standards.
- Industries rely on it to operate consistently and without leakages.
Manufacturer and Supplier of Knife Edge Gate Valve in India
Being a professional Knife edge gate valve manufacturers and suppliers, we offer high-quality performance flow control solutions for industrial use in India and the international market. Our valves have been designed to withstand harsh service requirements and are both long-lasting and highly efficient.
The Methods of Actuation and Their Role
Manual Operation
The gate is moved directly by hand wheel or lever
Pneumatic Actuation
Gate movement is fast and powered with air pressure.
Electric Actuation
Motorized control of automation systems.
Hydraulic Actuation
To be applied in heavy applications of high force.
The vertical movement of the blade is regulated by each actuator to provide constant opening and closing of the blade.
